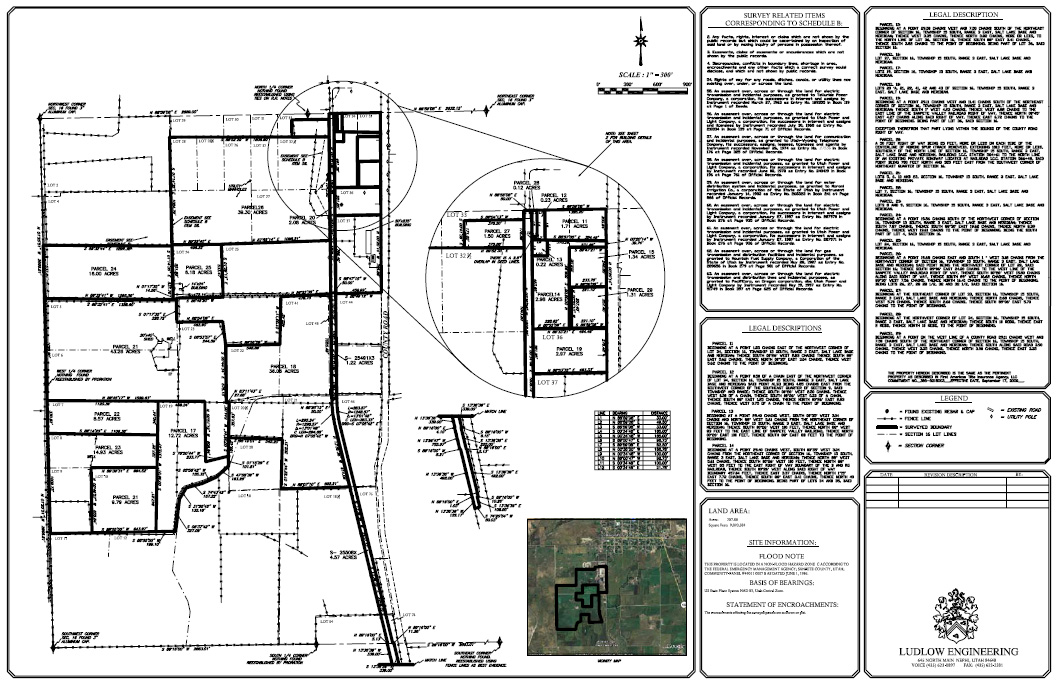

ALTA Survey

ALTA Survey

Image via Wikipedia

ALTA Survey

 ALTA stands for American Land Title Association

Sometimes you see in conjunction with ACSM which is American Congress on Surveying and Mapping.

 Here’s an ALTA Survey explanation:

An ALTA survey is a boundary survey prepared to a set of minimum standards that have been jointly prepared and adopted by the ALTA/ACSM (and). Additionally, an ALTA survey shows improvements, easements, rights-of-way, and other elements impacting the ownership of land. An ALTA Survey is often prepared for commercial properties, as it will provide the title company with the information required to insure the title to the land and improvements to the high degree that a commercial development may require. In addition to the minimum standards set forth, a table of optional elements is included in the ALTA/ACSM standards. A careful review of the elements from the optional “Table A” is helpful in delineating a clear scope of the land surveyor’s services.



A current title commitment is required before an ALTA Survey can be completed. The surveyor will refer to the title commitment for the legal description of the property and for the legal description of any encumbrances (exceptions). Areas of ownership, improvements and encumbrances will be shown graphically. If the survey discovers any encroachments, they should be shown graphically, and a note indicating the nature of the encroachment may also be added.



The certification language of the ALTA Survey should include the names of the affected parties; including as appropriate the buyer, seller, Title Company, and lender. The surveyor must work in close association with the title insurance company, as the surveyor and the title company are relying on each others work to show the matters affecting the ownership of the land and improvements in a comprehensive manner.[1]



Ludlow Engineering offers ALTA surveys in Arizona, Idaho, and Utah. At competitive prices, Ludlow Engineering is the premier ALTA surveyor.



[1] http://answers.yahoo.com/question/index?qid=20080522094002AAA66pm

Enhanced by Zemanta

»crosslinked«

ALTA Land Surveys In Utah

ALTA Land Surveys In Utah

ALTA Land Surveys In UtahNeed a ALTA survey? – Look no further than Ludlow Engineering and Land Surveying.  Ludlow Engineering and Land Surveying has been providing ALTA land surveys and other types of land surveys: such as topography surveys, as-built surveys, property surveys and more since 1975.

Enhanced by Zemanta

Commercial ALTA Surveys

Commercial ALTA Surveys

A commercial ALTA survey is an ALTA Land Title Survey for a commercial entity and future possibilities.  Call today for your estimate on a Commercial ALTA survey.

Surveys are conducted every single day for a variety of purposes and are an important part of society. Commercial surveys are a major area of work for land surveyors and are conducted for a range of commercial buildings and land.

What is a Commercial Survey?

A land survey is a map that outlines the exact boundaries, topography, divisions and features of a parcel of land. Commercial surveys are specifically created to suit the needs of commercial land owners. Most commercial buildings are very valuable and it is important that detailed surveys are done to protect the owners against any potential legal disputes in the future.

Different Types

Basically any type of land survey that exists can be used in the context of commercial land purposes. The type that is done depends on the specific needs of the land owner or seller. Some are much more detailed than others.

Some of the different types of surveys include: deformation, measured, boundary, topographic, ALTA and engineering surveys – to name just a few.

ALTA surveys are the most detailed commercial surveys available – and are very common for commercial land purposes. They combine a range of elements, including boundary surveys, mortgage surveys and topographic surveys to create a very detailed commercial survey. All ALTA surveys must adhere to minimum standards as set by the American Land Title Association (ALTA) and American Congress on Surveying and Mapping.

A structural survey is another popular type. They involve a detailed inspection of the physical condition and structural stability of the building itself. They highlight any repairs that need to be done. This is an essential survey for anyone considering buying a commercial property to avoid facing heavy repair costs after purchase. It is also important that large commercial buildings upkeep their physical condition for the safety of those who work inside.

Why are they needed?

There are many reasons why they are very important. We touched on one of those just before – safety. Many commercial surveys outline any potential hazards and damages that need to be looked at both on the land and the building itself.

Surveys are also important for anyone who is about to purchase a commercial property as it outlines exactly what you will be paying for – including the property boundaries and features such as driveways and car parks.

Commercial surveys also help protect owners against legal disputes about property boundaries. A detailed ALTA commercial survey has high regard in the courts and is very useful against if any court cases come against the owner.

How much do they cost?

Getting a survey can be very expensive. The most detailed ones can cost thousands of dollars. However, the cost depends on a variety of factors including size, shape, and vegetation on the land.

Anything that increases the difficulty and length of time it will take the land surveyor to do the survey will put up the price. Even the time of year and weather conditions can affect the price of a commercial survey.

How to get them

There are tens of thousands of licensed land surveyors across the USA who can create commercial surveys. Many specialize in specific types of surveys – so it is good to check what experience the land surveyor has before settling on a deal. The internet is a great place to find commercial surveyors, as well as your local directory.

To learn more about commercial surveying and to find a licensed land surveyor in your area, be sure to visit the Land Surveyor website for all your land survey needs.
